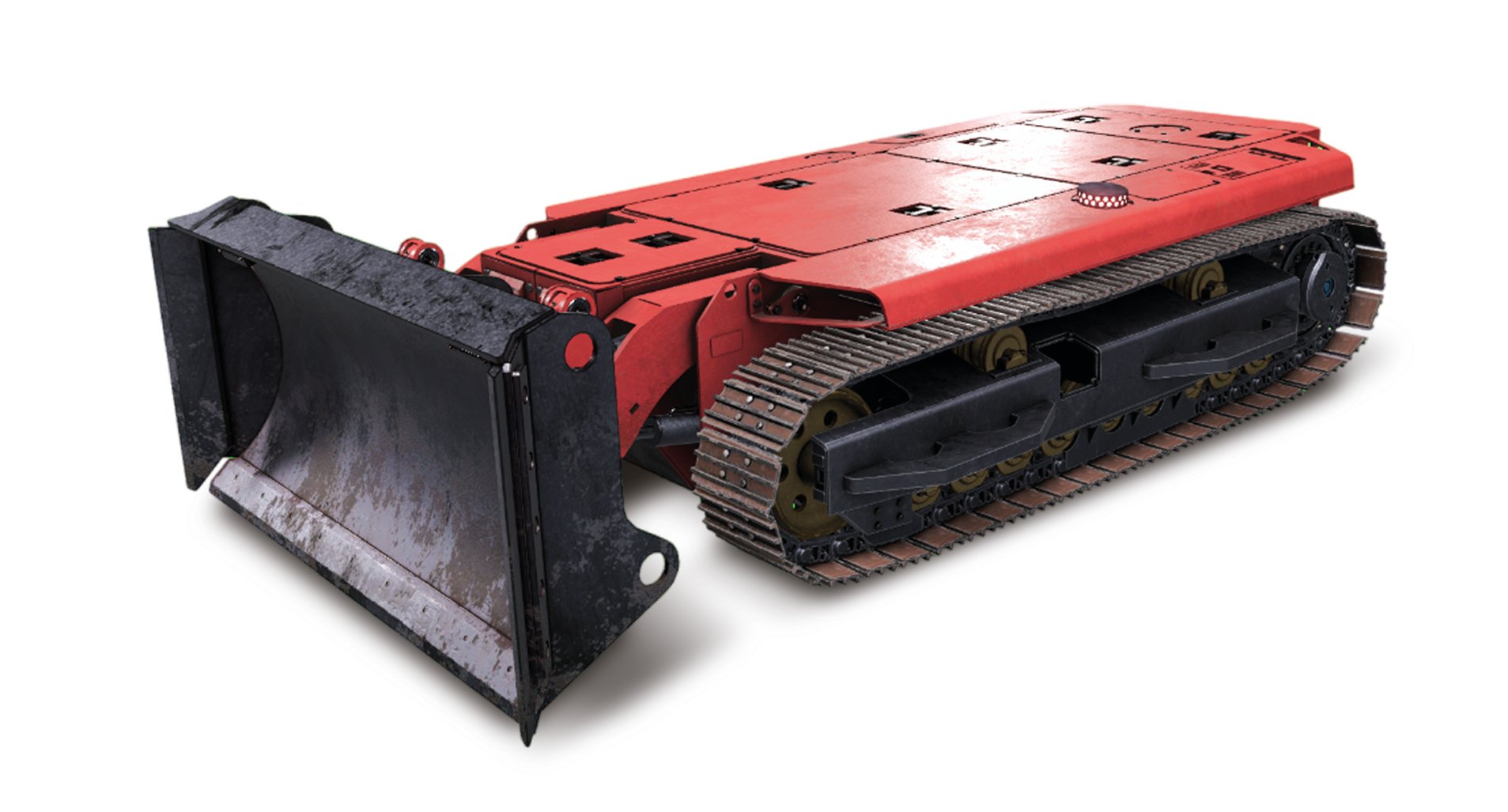

NRE Dozer
Productive, Safe and Zero Emissions
NRE — Narrow Reef Equipment
Operating stoping width from 1.0 m
The NRE Dozer is a very low profile, remotely controlled machine designed to increase safety and productivity in material handling operations. It works in stoping widths from 1.0 m at reef inclinations up to 25°.
- Remote control (operator at safe distance)
- Exchangeable front tools (blade / bucket / sweeper)
- Universal quick coupling
- Electric drive — zero gas emissions, low noise
- LiNMC battery up to 8 h runtime
- Integrated fast charger (3 h, 420–600 VAC 3ph)
- Height 786 mm
- Small turning radius
- Spring-applied hydraulic release brakes
- Dozer Blade — pushing/rough cleaning, 50–120 t/h
- Bucket — loading/transport, 0.65 m³
- Sweeper — fine cleaning, 100 m²/h
- Prime mover (L × W × H)
- 3364 × 1866 × 786 mm
- Weight
- 5023 kg
- Battery
- LiNMC, 353 V DC
- Battery runtime
- up to 8 h
- Charge time
- 3 h
- Stoping width
- from 1.0 m
- Max reef inclination
- 25°
- Room & Pillar Mining
- Sub-horizontal Narrow Reef
- Vertical and Sub-vertical Vein Mining
- Mucking / Ore Cleaning
- Sweeping & Vamping
- Cleaning Under Conveyor Belts
- Material Transport
Developed for Anglo American Platinum (2008–2019) — 3rd generation full NRE suite. Enables full mechanization of drill–blast–clean–support cycle in 1.0–1.7 m stoping environments.
